Galvanically isolated Ethernet port status LEDs
Features numbered pins for easy wiring

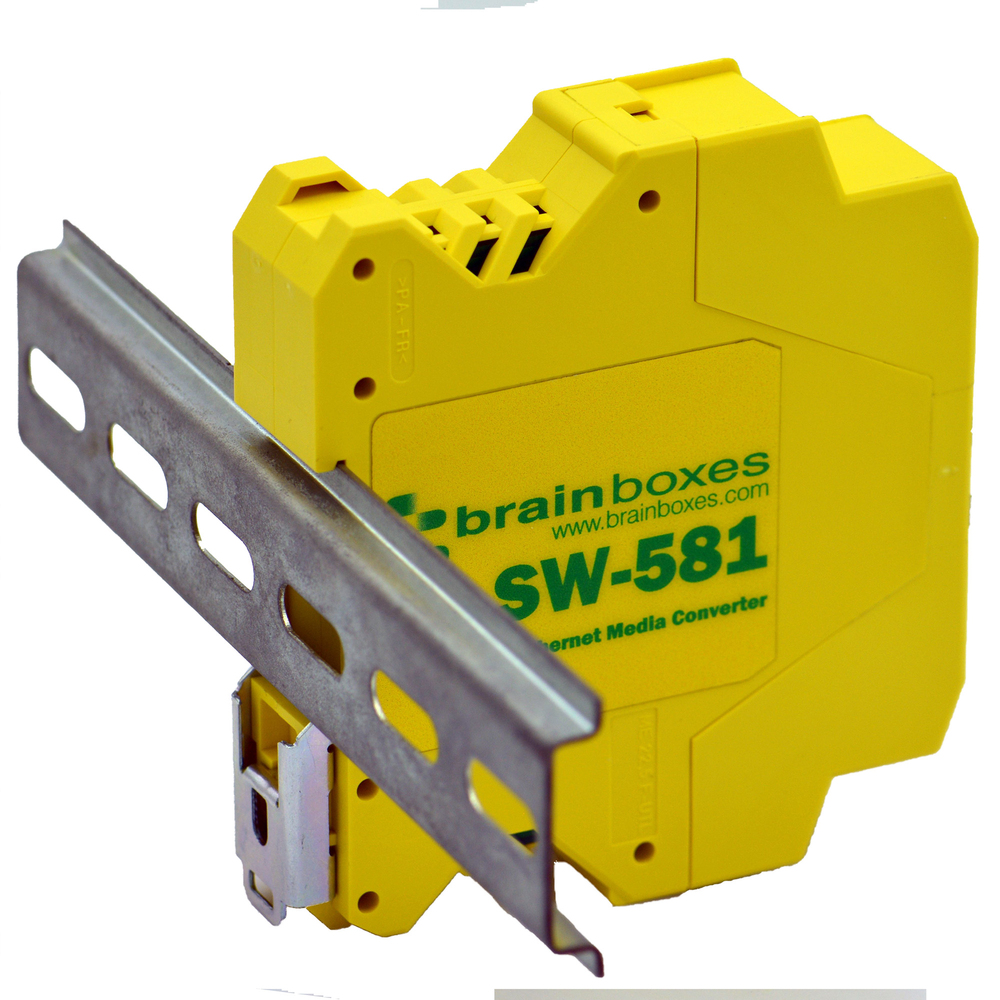

Integral DIN mount and slim design takes up minimal cabinet space
| Network | |
|---|---|
| Jumbo frames support | Yes |
| Jumbo frames | 9000 |
| Fiber ethernet cabling technology | 1000BASE-X |
| Networking standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3x |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Auto MDI/MDI-X | Yes |
| Maximum data transfer rate | 1000 Mbit/s |

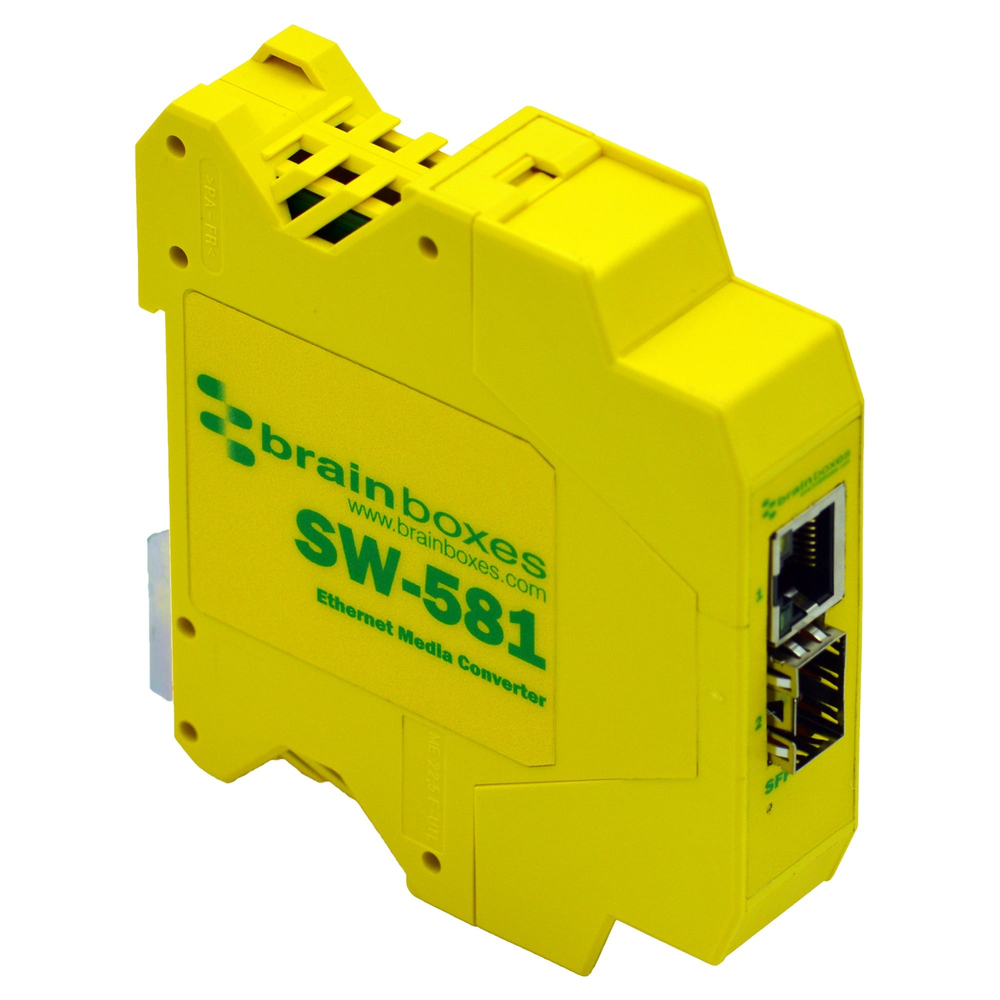

| Fiber optic connector | SFP |
| Features | |
| DIN rail mounting | Yes |
| International Protection (IP) code | IP20 |
| Housing material | Polyamide |
| Plug and Play | Yes |
| Product colour | Yellow |
| Internal | No |
| Power protection features | Over current |
| Ports & interfaces | |
| Connectivity technology | Wired |
| Ethernet LAN (RJ-45) ports | 1 |
| Fiber ports quantity | 1 |
| Fiber optic connector | SFP |
| Power | |
| Power consumption (max) | 3.3 W |
| Power over Ethernet (PoE) | No |
| Output voltage | 5 - 30 V |
| Weight & dimensions | |
| Width | 3.9" (99 mm) |
| Depth | 3.74" (95 mm) |
| Weight | 3.17 oz (90 g) |
| Height | 0.866" (22 mm) |
| Package depth | 5.31" (135 mm) |
| Package width | 6.3" (160 mm) |
| Package height | 1.93" (49 mm) |
| Package weight | 6.6 oz (187 g) |
| Operational conditions | |
| Operating temperature (T-T) | -40 - 80 °C |
| Storage temperature (T-T) | -40 - 85 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Packaging data | |
| Package depth | 5.31" (135 mm) |
| Package width | 6.3" (160 mm) |
| Package height | 1.93" (49 mm) |
| Package weight | 6.6 oz (187 g) |
| Technical details | |
|---|---|
| International Protection (IP) code | IP20 |
| Housing material | Polyamide |
| Plug and Play | Yes |
| Internal | No |
| Harmonized System (HS) code | 851762 |
| Compliance certificates | CE, UKCA, RoHS, REACH, WEEE |
| Performance | |
| Jumbo frames support | Yes |
| Plug and Play | Yes |
| Design | |
| DIN rail mounting | Yes |
| Country of origin | United Kingdom |
| International Protection (IP) code | IP20 |
| Housing material | Polyamide |
| Product colour | Yellow |
| Internal | No |
| Management features | |
| Plug and Play | Yes |
| Colour | |
| Product colour | Yellow |
| Certificates | |
| Compliance certificates | CE, UKCA, RoHS, REACH, WEEE |
| Logistics data | |
| Country of origin | United Kingdom |
| Export Control Classification Number (ECCN) | 5A991.b |
| Harmonized System (HS) code | 851762 |
| Other features | |
| MAC address table | 1000 entries |
| Form factor | DIN rail |
